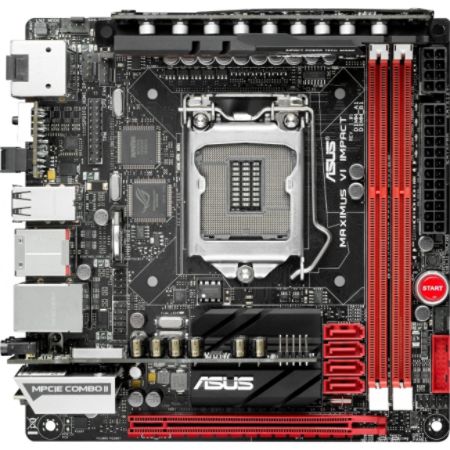

Asus Maximus VI Impact Desktop Motherboard - Intel Z87 Express Chipset - Socket H3 LGA-1150 Item # 976573
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
976573
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
ROG hits the road with mini-ITX - size is no longer any indicator of performance. They said it couldn't be done, but ROG's devoted crew of designers and engineers has finally delivered on the dream of a proper mini-ITX gaming board. Fans of LAN parties and gaming tournaments love to make a strong impression - and that's why more gamers choose Maximus VI Impact. Balancing great performance with excellent stability, power efficiency and thermal innovation, Maximus VI Impact fits in highly elegant and portable home-theater PC (HTPC) and shuttle-style compact cases while retaining ROG's renowned cachet - so being a champion is more flexible than ever. or couch-bound living room champion becomes easier than ever.Case and CPU-cooler compatibility is extremely important for mini-ITX gamers and enthusiasts. That's why ROG has performed hundreds of tests and modifications to perfect Maximus VI Impact's layout to ensure maximum compatibility with both mini-ITX chassis designs and CPU coolers.
Product Details
| Item # | 976573 |
| Manufacturer # | RZ1387 |
| Number of SATA Interfaces | 4 |
| Number of DisplayPort Outputs | 1 |
| Power Supply Supported | EATX12V |
| DisplayPort | Yes |
| Memory Speed Supported | 3 GHz (O.C.); 2.93 GHz (O.C.); 2.80 GHz (O.C.); 2.67 GHz (O.C.); 2.60 GHz (O.C.); 2.40 GHz (O.C.); 2.20 GHz (O.C.); 2.13 GHz (O.C.); 2 GHz (O.C.); 1.87 GHz (O.C.); 1.80 GHz (O.C.); 1.60 GHz; 1.33 GHz |
| S/PDIF | Yes |
| Certifications & Standards | ACPI5.0a |
| Sleep / Wake Up | Wake on LAN (WOL) |
| Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7 |
| Number of Network (RJ-45) Ports | 1 |
| BIOS Type | AMI |
| Internal Interfaces | 2 x USB 2.0 - header ¦ 2 x USB 3.0 - header ¦ 1 x SPDIF out - header ¦ 1 x audio - header |
| Registered or Buffered | Unbuffered |
| Graphics Controller Manufacturer | Intel |
| eSATA | Yes |
| RAID Features | Intel Smart Response Technology |
| Audio Line In | Yes |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin SATA, 1 x 7pin eSATA, 1 x M.2 - 4 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| Number of PCI Express x16 Slots | 1 |
| Total Processor Supported | 1 |
| Total Number of PCI Express Slots | 1 |
| 64-bit Processing | Yes |
| Bus Clock | 1600 MHz, 1333 MHz, 2800 MHz (O.C.), 2933 MHz (O.C.), 2666 MHz (O.C.), 2600 MHz (O.C.), 2400 MHz (O.C.), 2200 MHz (O.C.), 2133 MHz (O.C.), 2000 MHz (O.C.), 1866 MHz (O.C.), 1800 MHz (O.C.), 3000 MHz (O.C.) |
| Max Processors Qty | 1 |
| RAID Supported | Yes |
| Wireless LAN Standard | IEEE 802.11a/b/g/n/ac |
| brand name | ASUS |
| Number of Mini PCI Express Slots | 1 |
| Audio Channels | 7.1 |
| Network Controller | Intel I217V |
| Processor Technology | Turbo Boost Technology 2.0; Quick Sync Video Technology |
| Number of USB 2.0 Ports | 4 |
| Buttons & Keys | CMOS Clear; ROG Connect On/Off; DirectKey; MemOK; Reset; Power |
| Memory Form Factor | DIMM |
| Processor Socket | LGA1150 Socket |
| Chipset Model | Z87 Express |
| Sound Controller Manufacturer | Creative |
| Bluetooth | Yes |
| Onboard Video | CPU Dependent Video |
| PCI Express Standard | PCI Express 3.0 |
| Number of eSATA Ports | 1 |
| Total Number of Onboard USB Ports | 4 |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| RAID Levels | 0; 1; 5; 1+0 |
| HDMI | Yes |
| Processor Supported | Core i7; Core i5; Core i3; Pentium; Celeron |
| BIOS Features | DMI 2.0 support, WfM 2.0 support, Multilingual BIOS, ASUS EZ Flash 2, ASUS O.C. Profile, ACPI 2.0a support, SMBIOS 2.5 support, USB BIOS Flashback, UEFI BIOS |
| Total Number of USB Ports | 8 |
| Onboard Audio Header | Yes |
| width | 6.7 in |
| Number of Memory Slots | 2 |
| Sound Controller Model | SupremeFX |
| depth | 6.7 in |
| Product Name | Maximus VI Impact Desktop Motherboard |
| Audio Codec | SupremeFX Impact |
| manufacturer | ASUS Computer International |
| Number of S/PDIF Out Ports | 1 |
| Audio Line Out | Yes |
| weight | 1.20 lb |
| Max Size | 16 GB |
| Maximum Memory | 16 GB |
| Supported RAM Integrity Check | Non-ECC |
| controller type | Serial ATA/600 |
| Number of Onboard USB 2.0 Ports | 2 |
| Number of USB 3.0 Ports | 4 |
| Gigabit Ethernet | Yes |
| Network (RJ-45) | Yes |
| Microphone Port | Yes |
| Memory Standard | DDR3-3000/PC3-24000 (O.C.); DDR3-2933/PC3-23400 (O.C.); DDR3-2800/PC3-22400 (O.C.); DDR3-2666/PC3-21330 (O.C.); DDR3-2600/PC3-20800 (O.C.); DDR3-2400/PC3-19200 (O.C.); DDR3-2200/PC3-17600 (O.C.); DDR3-2133/PC3-17000 (O.C.); DDR3-2000/PC3-16000 (O.C.); DDR3-1866/PC3-15000 (O.C.); DDR3-1800/PC3-14400 (O.C.); DDR3-1600/PC3-12800; DDR3-1333/PC3-10600 |
| Wireless LAN | Yes |
| Number of Total Expansion Slots | 2 |
| Chipset Manufacturer | Intel |
| Memory Technology | DDR3 SDRAM |
| form factor | Mini ITX |
| Number of HDMI Outputs | 1 |
| Number of Onboard USB 3.0 Ports | 2 |
| warranty length | 3-year limited |
| model name | Maximus VI Impact |
| Show More ▾ |
Customer Reviews
From the Manufacturer|
SuperSpeed USB (USB 3.1 Gen 1)
-
SuperSpeed USB delivers effortless audio/video streaming, music and photos to your home, office, car, and anywhere in between. SuperSpeed USB transfers data up to 5Gbps, up to 10X faster than Hi-Speed USB. SuperSpeed USB works with all USB products. It’s backward compatible with USB 2.0.
USB 3.1 Specification
The USB 3.1 specification includes definitions for both 5Gbps (Gen 1) and 10Gbps (Gen 2) data rates:
- USB 3.1 Gen 1 – SuperSpeed USB (Products signal at 5Gbps)
- USB 3.1 Gen 2 – SuperSpeed USB 10Gbps (products signal at 10Gbps)
Note: The terms USB 3.1 Gen 1 and USB 3.0 are synonymous
-
What the Logos Mean to You
To use the SuperSpeed USB logo and icons, products must pass USB-IF certification testing to ensure they are built to meet the USB specifications and interoperate with other USB devices. This means you can be confident that Certified USB products will work with other Certified USB products. This content is being provided for educational purposes only and does not imply that the associated product has been certified. To confirm if a device has been certified, visit the www.usb.org website or look for the Certified SuperSpeed USB logo on the product or product packaging.
